• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1974/1975

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29446

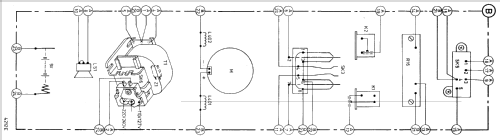

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage

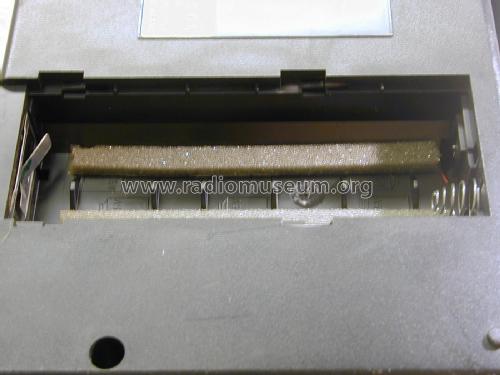

• Line / Batteries (any type) / 110-127; 220-240 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

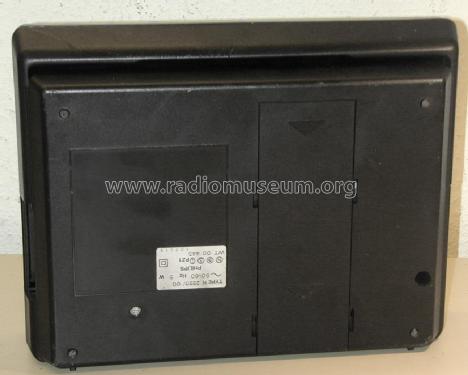

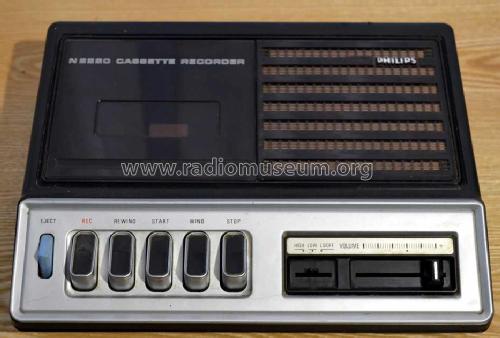

• Model: Cassetten-Recorder 2220 N2220 - Philips - Österreich

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 75 x 210 mm / 10.6 x 3 x 8.3 inch

• Notes

• Philips N2220/00 , einschiebbarer Tragegriff, Tonekontrolle HI/LO , extra Eject Taste

  Übertragungsbereich: 80-10000 Hz.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Literature/Schematics (1)

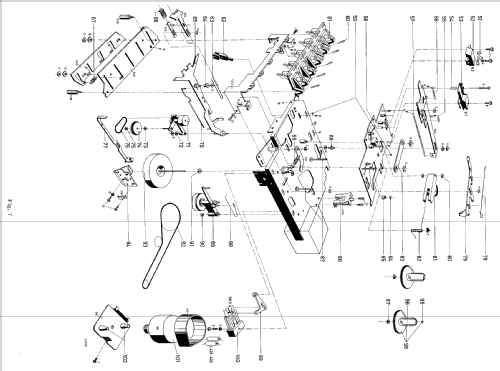

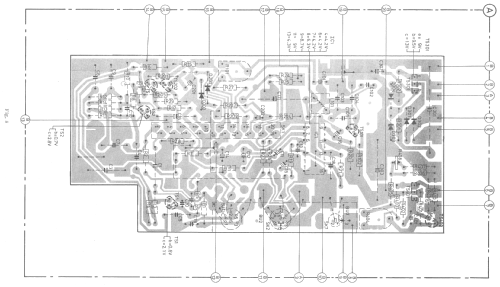

• -- Original-techn. papers.
