• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1968–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27533

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BC148B BC148B BC148B AC128 AC127 BC148B AC187

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

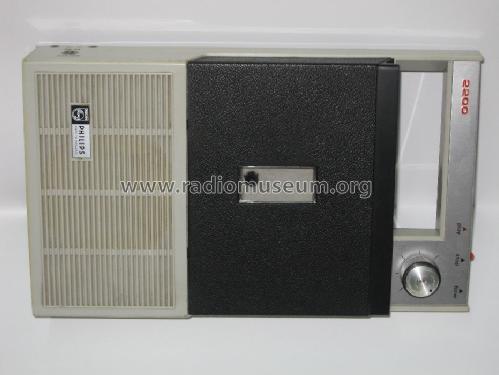

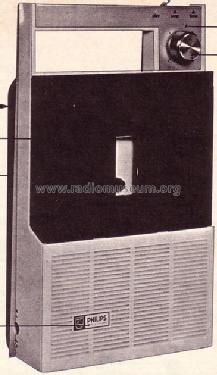

• Model: Cassettophon 2200 - Philips - Österreich

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 255 x 65 mm / 6.3 x 10 x 2.6 inch

• Notes

• Kassette-Spieler Philips N2200 /0 /01. Netzbetrieb mit zusätzlichem Netzgerät möglich.
  In den VDRG-Handbüchern ohne "N" geführt.

  Die folgenden Transistorsätze sind ebenfalls für dieses Modell aufgeführt:
   -  BC108B BC148C BC147 AC127 AC128 BC147 AC187
   -  BC149 BC148B BC148B AC127 AC128 BC148B AC187.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Price in first year of sale
• 89.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Schematic

• Literature/Schematics (3)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
