Compact Disc Player CD100 /05

Compact Disc Player CD100 /05; Philips; Eindhoven (ID = 361566) R-Player Compact Disc Player CD100 /05; Philips; Eindhoven (ID = 361567) R-Player
Compact Disc Player CD100 /05; Philips; Eindhoven (ID = 361568) R-Player Compact Disc Player CD100 /05; Philips; Eindhoven (ID = 567471) R-Player
Use red slider bar for more.
Compact Disc Player CD100 /05; Philips; Eindhoven (ID = 361566) R-Player
Philips; Eindhoven: Compact Disc Player CD100 /05 [R-Player] ID = 361566 933x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player CD100 /05, Philips; Eindhoven (tubes international!); Miniwatt:

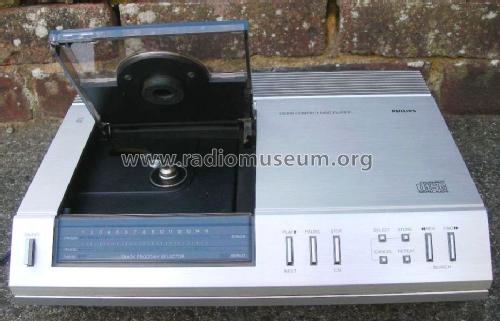

My 1983 Philips CD100/05 CD player, the first european built CD player to appear on the european market in March 1983.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1983 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player CD100 /05 - Philips; Eindhoven tubes
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 320 x 73 x 267 mm / 12.6 x 2.9 x 10.5 inch
Notes

The first European built CD player, released in Japan in October 1982 as the Marantz CD63. This Philips CD100 /05 version was released in the UK in March 1983. With push button keys for Play/Next, Pause, Stop/CM (Clear Memory), Repeat, REV, FWD, Select, Cancel and Store (for storing tracks when compiling a programme). 15 LED track indicators, LED indicators for Pause, Error and  Repeat. On the back, RCA phono sockets for Line Output.

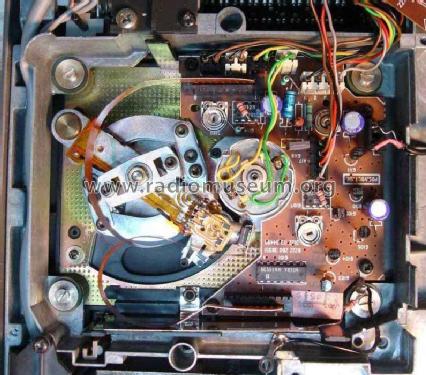

Uses the Philips CDM-0 CD player mechanism and first generation Philips chipset.
SAA7010 CD-Decoder
SAA7000 Interpolation
SAA7020 Error correction
SAA7030  4 x Oversampling and digital filter
TDA1540 14 + 2 bit D/A converter (one per audio channel).

Specification
Audio Performance
Number of channels2
Frequency range20Hz-20kHz ±0.3 dB
Dynamic Range> 90dB
Signal to noise ratio> 90 dB (20Hz-20kHz)
Channel separation> 86dB (20-20,000Hz)
> 90dB (at 1000Hz)
Total Harmonic Distortion
(incl. noise) at max. output level
< 0.005%
Wow and Flutterquartz crystal precision
D/A Conversion16 bit with digital filtering
Error Correction SystemCross Interleave Reed Solomon Code (CIRC)
Audio Output Level2 V rms, typical
Optical Readout System
Lasersemi-conductor AlGaAs
Wavelength800 nm
Signal format
Sampling Frequency44.1kHz
Quantization16 bit lineair/channel
Disc
Diameter120 mm
Thickness1.2 mm
Sense of rotation (seen from
reading side
anti-clockwise
Scanning velocity1.2-1.4 m/s
Rotation speed500-200 rpm
Playing time (max)60 min (stereo)
Track pitch1.6µm
Materialplastic

Power Supply
Mains voltages: 110,127,220,240V ±10% 50/60Hz (switchable by transformer connections)
(The /05 model is set to 240V AC 50/60Hz for the UK)

Power Consumption: 20 Watts approx.

See also the Philips CD100 /00 (European Continent) and Magnavox FD1000 (USA) versions.

Made in Belgium and Holland

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Price in first year of sale 330.00 GBP
Literature/Schematics (1) - - Manufacturers Literature (Philips CD100 Operating Instructions)
Literature/Schematics (2) - - Manufacturers Literature (Service Manual for the CD100 /00 /05 dated 1983-03-02)

Model page created by Howard Craven. See "Data change" for further contributors.
