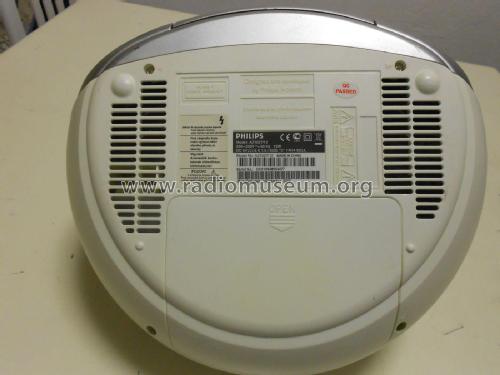

CD Soundmachine AZ1027 /12
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 2009
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295248
- Number of Transistors
- Semiconductors present.
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- CD-Player, -Writer, MD, MOD (audio)
- Power type and voltage
- Line / Batteries (any type) / 220-230 / R14: 6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 10 cm = 3.9 inch
- Power out
- 2 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: CD Soundmachine AZ1027 /12 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 291 x 146 x 243 mm / 11.5 x 5.7 x 9.6 inch
- Notes
-
Controllo volume - DBB (Dymanic Bass Boost) - ingresso MP3 link - lettore/registratore cassette stereo 7 - tasti play/pause/stop/eject/ff.ww./rew/rec - display frontale per tracce CD - tasti CD prog/mode/play/pause/stop/ff.ww/rew. - antenna telescopica esterna - commutatore FM/MW - commutatore CD/Tuner/mp3 link/tape off - maglia di trasporto.
Made in China.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
