TA2157

Information - Help
ID = 70261

Country:
Japan
Brand: Toshiba Corporation; Tokyo
Tube type:  IC - Integrated Circuit
Identical to TA2157
Base Wires
Description

Aufbau/Content: IC (LSI);
Form/Case/Outline: SSOP-24 (TA2157F) | TSSOP-24 (TA2157FN[G]);
Application/Type: Digital Servo Head Amp for CD System;
Daten/electr.data: Vcc: 3.3 V; Icc: 19+18 mA; Pd: <600 mW; T op: -40...+85 °C.
-


Dimensions (WHD)
incl. pins / tip		 8 x 1 x 6 mm / 0.31 x 0.04 x 0.24 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

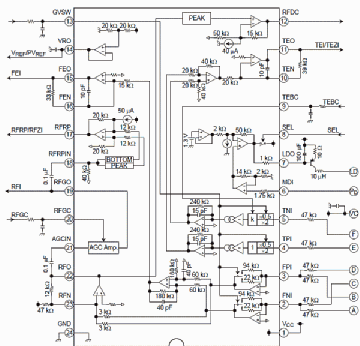

TA2157: Toshiba
Günther Stabe † 19.8.20
ta2157_s2.png TA2157: Toshiba
Günther Stabe † 19.8.20
TA2157: Toshiba
Günther Stabe † 19.8.20
Usage in Models 1= 1990?? ; 1= 2000?? ; 1= 2002?? ; 1= 2005?? ; 1= 2008?? ; 1= 2009 ; 1= 2013??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):7
