Chansonette L3A61T /70R /70L /70D; Philips - Österreich (ID = 690596) Radio
Philips - Österreich: Chansonette L3A61T /70R /70L /70D [Radio] ID = 690596 760x602

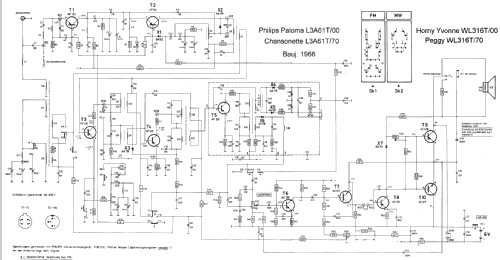

Select picture or schematic to display from thumbnails on the right and click for download.
For model Chansonette L3A61T /70R /70L /70D, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF121 AF124 AF126 AF126 AF126 AC125 AC127 AC128 AC127 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.55 W (unknown quality)
from Radiomuseum.org Model: Chansonette L3A61T /70R /70L /70D - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 160 x 70 mm / 9.6 x 6.3 x 2.8 inch

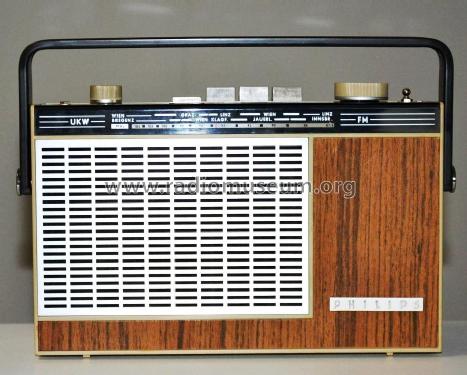

Notes 3 Ausführungen: /70R = hart/schwarz, /70L = hart/rot, /70D = teak
Parallelgerät zum Horny WL316T/70.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 1'245.00 ATS
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Gerhard Heigl. See "Data change" for further contributors.
