Clock Radio Recorder 22ARC30/00

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 687528) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 687529) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599954) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599955) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599956) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599957) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599958) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599959) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599960) Radio

Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1599962) Radio
Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 972397) Radio Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 687534) Radio
Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1075320) Radio Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1077033) Radio
Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 1077037) Radio
Use red slider bar for more.
Clock Radio Recorder 22ARC30/00; Philips - Österreich (ID = 972397) Radio
Philips - Österreich: Clock Radio Recorder 22ARC30/00 [Radio] ID = 972397 500x332
Select picture or schematic to display from thumbnails on the right and click for download.
For model Clock Radio Recorder 22ARC30/00, Philips - Österreich:
Picture from an ended eBay auction № 320667232812, created by optiplexgn

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14:
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player; Radio with other functions
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Clock Radio Recorder 22ARC30/00 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Radiorecorder 22ARC30/00 mit Uhr.

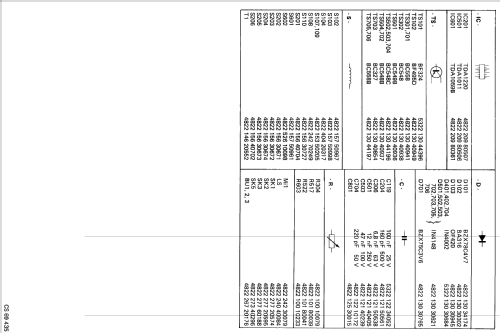

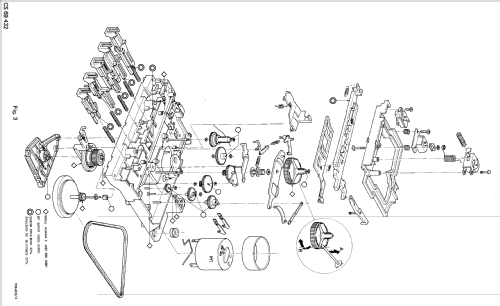

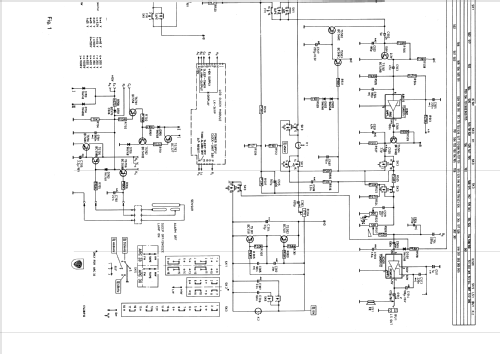

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Philips - Österreich
Here you find 1053 models, 989 with images and 852 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
