• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144721

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 14Q7 14A7 14B6 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch

• Material
• Bakelite case

• from Radiomuseum.org

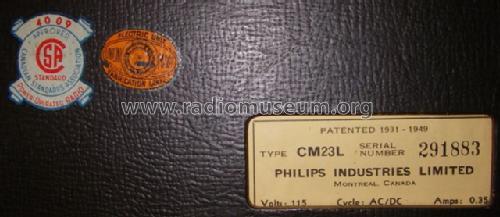

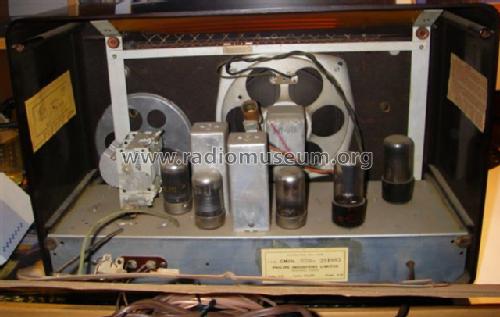

• Model: CM23L - Philips Canada

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 190 x 280 mm / 16.5 x 7.5 x 11 inch

• Notes
• SW 1: 60-120 m
  SW 2: 16-50 m
  Dial bulb: 115 V, 6-8 W (E10).
  consumption 0.35 amps. Built in loop antenna. Canada Supplements.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements Philips page 76 to 78

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.

• Other Models

• Here you find 162 models, 90 with images and 138 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Canada
