CM-21L
Use red slider bar for more.
Philips Canada: CM-21L [Radio] ID = 1524318 933x704
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1947/1948 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 14Q7 14A7 14B6 50L6GT 35Z5GT |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast plus 2 Short Wave bands. |
| Details | |
| Power type and voltage | AC/DC-set / 100-125 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm |
| Power out | |
| from Radiomuseum.org | Model: CM-21L - Philips Canada |
| Dimensions (WHD) | 12 x 8.25 x 7 inch / 305 x 210 x 178 mm |
| Notes | The Canadian Philips model CM21L is a 5-tube table radio. Covers standard broadcast and 1.9 to 6.2 MHz and 5.7 to 18.2 MHz shortwave. Has internal plate antenna. |
| Price in first year of sale | 62.50 $ |
| Circuit diagram reference | Radio College of Canada |

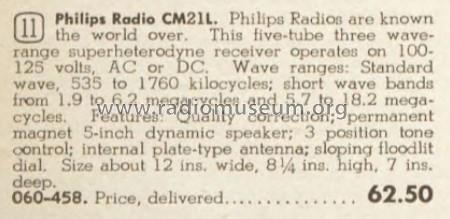

| Mentioned in | Eaton's Fall and Winter 1948-49 Catalog. |
| Literature/Schematics (1) | Canada schematics Philips page 1 to 2 |
Model page created by Dirk Taekels. See "Data change" for further contributors.
