• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181838

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6AU6 6J5 6AU6 6BA6 6E5 12AT7 6BE6 6AQ5 6AQ5 5AZ4

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: CM-85A - Philips Canada

• Notes

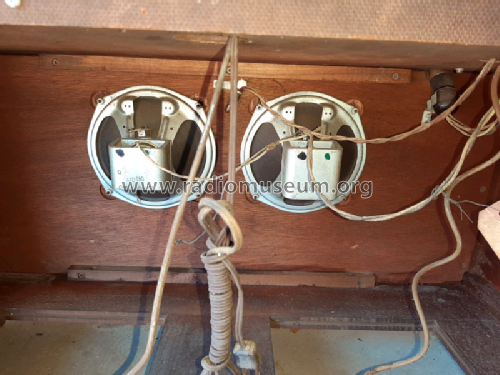

• Canada Supplements. Built in loop antenna for BC. Two PM speakers 8 inch.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements philips page 47 to 49

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
