• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182023

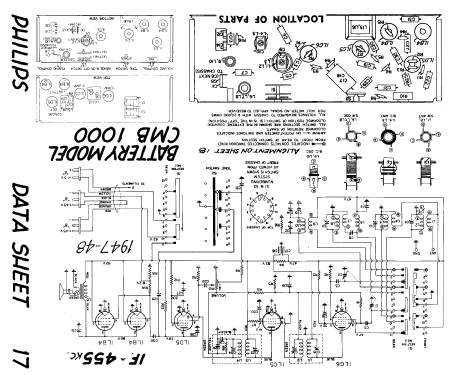

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1LC6 1LC5 1LD5 1LB4 1LB4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries / 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 6 W (unknown quality)

• from Radiomuseum.org
• Model: CMB1000M - Philips Canada

• Shape
• Tablemodel, with any shape - general.

• Notes
• Canada Supplements. BC:535 - 1740Khz. SW:1.85 - 6.25Mc.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada supplements Philips page 17,18,76

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 162 models, 90 with images and 138 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
