Cocktail 080 90AL080 /00 /01 /15 /40 /45 /50

Cocktail 080 90AL080; Philips - Österreich (ID = 443853) Radio

Cocktail 080 90AL080; Philips - Österreich (ID = 443854) Radio
Cocktail 080 90AL080; Philips - Österreich (ID = 2197401) Radio Cocktail 080 90AL080; Philips - Österreich (ID = 2197398) Radio
Cocktail 080 90AL080; Philips - Österreich (ID = 2197400) Radio Cocktail 080 90AL080; Philips - Österreich (ID = 2197399) Radio
Cocktail 080 90AL080; Philips - Österreich (ID = 686016) Radio Cocktail 080 90AL080; Philips - Österreich (ID = 686013) Radio
Cocktail 080 90AL080; Philips - Österreich (ID = 686014) Radio Cocktail 080 90AL080; Philips - Österreich (ID = 443852) Radio
Cocktail 080 90AL080; Philips - Österreich (ID = 661885) Radio Cocktail 080 90AL080; Philips - Österreich (ID = 661886) Radio
Use red slider bar for more.
Cocktail 080 90AL080; Philips - Österreich (ID = 2197401) Radio
Philips - Österreich: Cocktail 080 90AL080 [Radio] ID = 2197401 800x1088
Select picture or schematic to display from thumbnails on the right and click for download.

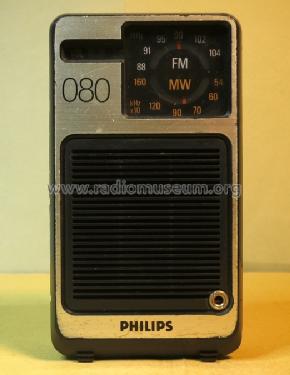

For model Cocktail 080 90AL080 /00 /01 /15 /40 /45 /50, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz; 3 AF stage(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Cocktail 080 90AL080 [/00 /01 /15 /40 /45 /50] - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 80 x 145 x 42 mm / 3.1 x 5.7 x 1.7 inch
Notes ZF-Verstärker enthält L/C und Keramik-Filter für AM und FM.
Net weight (2.2 lb = 1 kg) 0.280 kg / 0 lb 9.9 oz (0.617 lb)

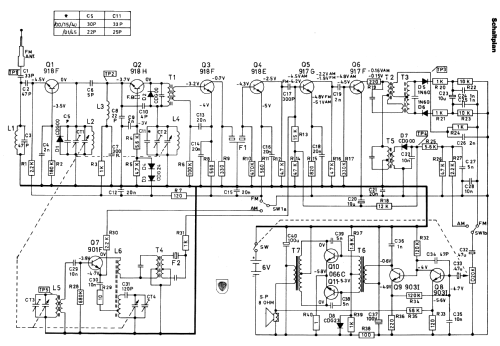

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
