• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123162

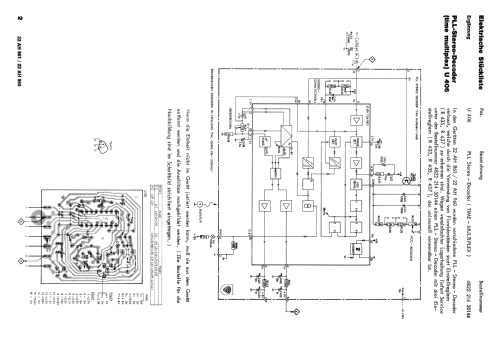

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Compact Stereo kombi cassette 22AH861 - Philips - Österreich

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 508 x 107 x 338 mm / 20 x 4.2 x 13.3 inch

• Notes
• Stereo-Steuergerät mit eingebautem Kassettenrecorder N2503.
  2 Lautsprecherboxen 22AH461/21R im Lieferumfang.
