CR5033
Philips Canada
- Country
- Canada
- Manufacturer / Brand
- Philips Canada
- Year
- 1963 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 306008

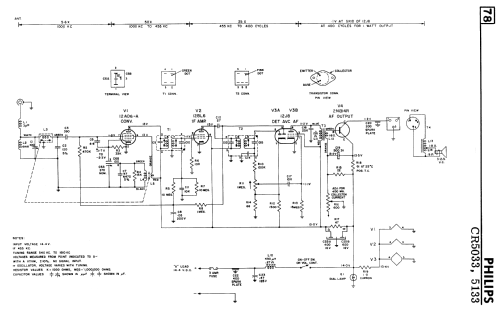

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 1
- Semiconductors
- 2N1314
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: CR5033 - Philips Canada
- Shape
- Chassis only or for «building in»
- Notes
-
The Philips model CR5033 is a 3-tube, 1-transistor car radio used in some 1963 Plymouth and Dodge model cars. This radio uses space-charge tubes operating directly from 12V B+ and as such a vibrator is not required.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1963 Supplement 64)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
