Portable D2000/02

Portable D2000/02; Philips Hong Kong (ID = 1743540) Radio Portable D2000/02; Philips Hong Kong (ID = 688512) Radio
Portable D2000/02; Philips Hong Kong (ID = 688515) Radio Portable D2000/02; Philips Hong Kong (ID = 688513) Radio
Portable D2000/02; Philips Hong Kong (ID = 688514) Radio Portable D2000/02; Philips Hong Kong (ID = 1743544) Radio

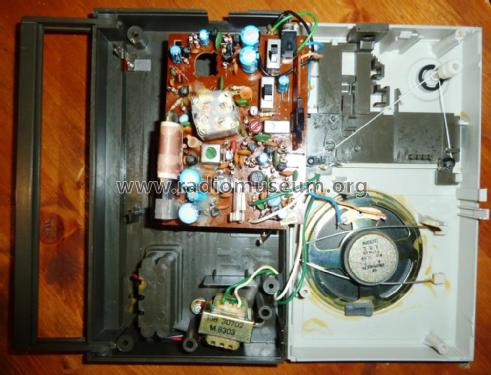

Portable D2000/02; Philips Hong Kong (ID = 1743545) Radio Portable D2000/02; Philips Hong Kong (ID = 2576582) Radio
Portable D2000/02; Philips Hong Kong (ID = 2576583) Radio Portable D2000/02; Philips Hong Kong (ID = 2576584) Radio
Use red slider bar for more.
Portable D2000/02; Philips Hong Kong (ID = 1743540) Radio
Philips Hong Kong: Portable D2000/02 [Radio] ID = 1743540 900x751
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable D2000/02, Philips Hong Kong

Country:  Hong Kong
Manufacturer / Brand:  Philips Hong Kong
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 or 110-127 or AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Portable D2000/02 - Philips Hong Kong
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 115 x 45 mm / 7.9 x 4.5 x 1.8 inch
Notes

To change from 220 to 110 V it's necessary to reverse the plate on the back fixed with two screws.

See also Philips D2000/00.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by Klemens Rhode. See "Data change" for further contributors.
