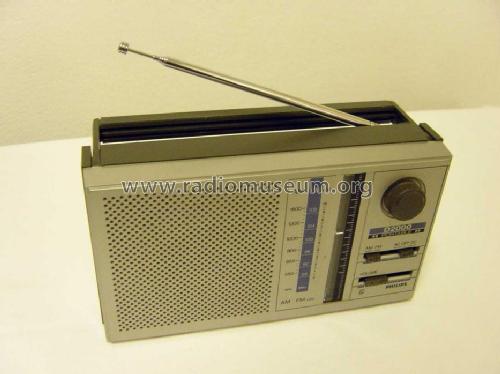

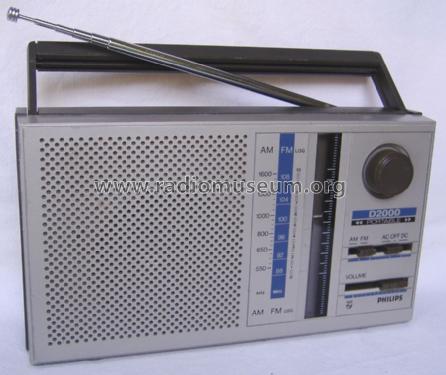

For model Portable D2000/00, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 or 110-127 or AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out
from Radiomuseum.org Model: Portable D2000/00 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 115 x 55 mm / 7.9 x 4.5 x 2.2 inch
Notes

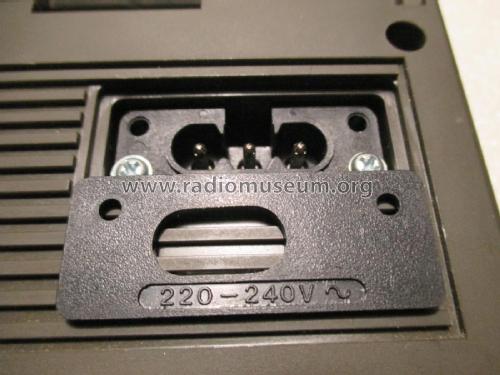

To change from 220 to 110 V it's necessary to reverse the plate on the back fixed with two screws.

See also Philips D2000/02.

Net weight (2.2 lb = 1 kg) 0.540 kg / 1 lb 3 oz (1.189 lb)
Source of data - - Data from my own collection / Radiokatalog Band 2, Ernst Erb

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
