D8118 /00 /05; Philips - Österreich (ID = 814096) Radio
Philips - Österreich: D8118 /00 /05 [Radio] ID = 814096 933x802
Select picture or schematic to display from thumbnails on the right and click for download.
For model D8118 /00 /05, Philips - Österreich:

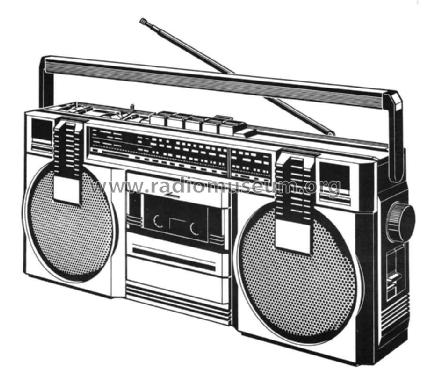

Bild aus Servicedoku.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1983/1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220-240 / 6 × 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out 1 W (unknown quality)
from Radiomuseum.org Model: D8118 /00 /05 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 420 x 180 x 90 mm / 16.5 x 7.1 x 3.5 inch
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

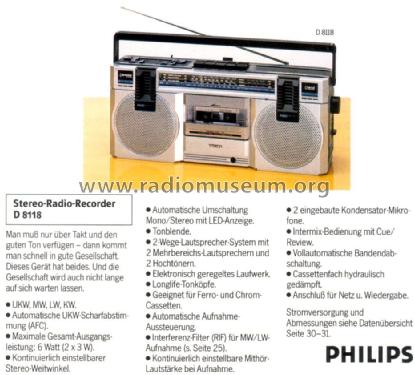

Mentioned in -- Original prospect or advert (Philips Katalog 1983)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
