DeForest All Transistor CP6000

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139702

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 3x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: DeForest All Transistor CP6000 - Philips; Eindhoven tubes
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 147 x 83 x 33 mm / 5.8 x 3.3 x 1.3 inch
  • Notes
  • DeForest All Transistor CP6000 was manufactured by Philips Eindhoven for the north american market. Construction similar to Fanette L0X90T and L0X91T.
  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
  • Source of data
  • - - Data from my own collection

 Collections | Museums | Literature

Collections

The model DeForest All Transistor is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips; Eindhoven: DeForest All Transistor CP6000

Threads: 1 | Posts: 3

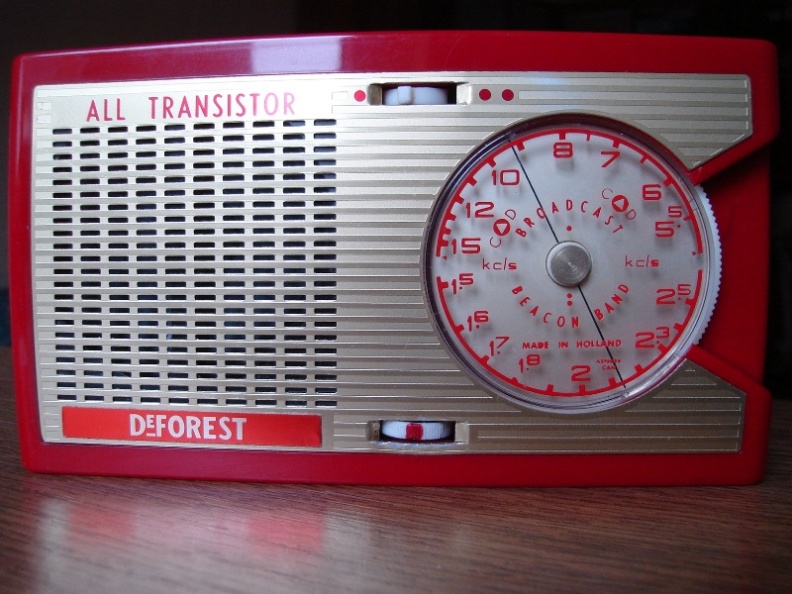

I am in possession of an attractive little pocket radio which seems to have been made in the 1960s and cannot be identified.  On the front it says: "DeForest All Transistor" and on the scale: "Made in Holland". The scale is round, and instead of MW/LW it says: "Broadcast" and "Beacon Band". It has seven transistors: 2N412, 2x2N410, OC71A, OC71 plus 2 output transistors which I can't identify.

Does anyone recognise this radio?  Please see attached picture.



Attachments

Francis Hall, 13.Nov.08
