Double Deck Sound System D8678 /00 /02 /05

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156646) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156647) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156648) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156649) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156650) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156651) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156652) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156653) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156654) Radio

Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 2156655) Radio
Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703520) Radio Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703521) Radio
Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703522) Radio Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703524) Radio
Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703525) Radio Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703527) Radio
Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703528) Radio Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703529) Radio
Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703530) Radio Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703531) Radio
Use red slider bar for more.
Double Deck Sound System D8678 /00 /02 /05; Philips - Österreich (ID = 1703520) Radio
Philips - Österreich: Double Deck Sound System D8678 /00 /02 /05 [Radio] ID = 1703520 933x445
Select picture or schematic to display from thumbnails on the right and click for download.
For model Double Deck Sound System D8678 /00 /02 /05, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 450/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line plus power jack, mostly with battery or storage battery / 220 or 240 / 12 / 10 × 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Double Deck Sound System D8678 /00 /02 /05 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Dimensions (WHD) 265 x 260 x 190 mm / 10.4 x 10.2 x 7.5 inch
Notes

5-Band Graphic Equalizer; 12 Festsender-Speicherplätze; abnehmbare Lautsprecher; Plattenspielereingang;
ext. Spannungsversorgung für Auto oder Boot  9 - 14 Volt;
Stromaufnahme bei Netzbetrieb 36 Watt.
Maße mit eingehängten Lautsprechern BHT 580 x 260 x 190 mm.

3 Ausführungen:
►/00 = für Netzspannung 220 Volt, mit Antennenanschluss,
►/02 = für Netzspannung 220 Volt, ohne Antennenanschluss,
►/05 = für Netzspannung 240 Volt, ohne Antennenanschluß.

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)

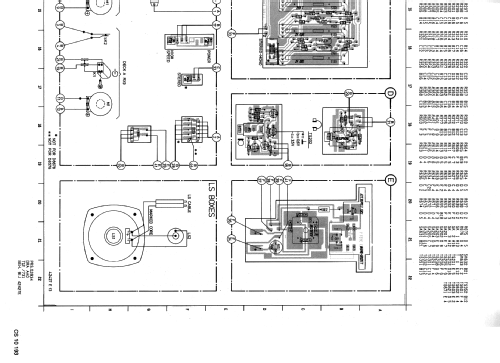

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
