For model SA1009U /19, Dux Radio AB; Stockholm:
This Dux is manufactured by Philips Holland, for the Swedish company Dux.

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner

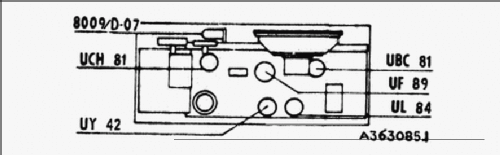

Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY42
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-127/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: SA1009U /19 - Dux Radio AB; Stockholm
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 326 x 200 x 141 mm / 12.8 x 7.9 x 5.6 inch
Notes Dark red-brown bakelite. It may have been manufactured in Holland, and imported to Sweden? The chassis is the same as in Philips B1X 67U. No mains transformer, chassis on powerline potential! Produced also in other colour schemes, i.e creamy white.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 160.00 SEK

Model page created by Jörgen Svensson. See "Data change" for further contributors.
