RK12 EL3515 /22b; Philips Radios - (ID = 639868) R-Player
Philips Radios -: RK12 EL3515 /22b [R-Player] ID = 639868 461x383
Select picture or schematic to display from thumbnails on the right and click for download.
For model RK12 EL3515 /22b, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC83 ECL82 EZ80 EM84
Semiconductors (the count is only for transistors) OA85
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.6 cm = 3.8 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: RK12 EL3515 /22b - Philips Radios - Deutschland
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Notes

Philips EL 3515 2-Spur Tonbandgerät, Mono

Ausführungsformen:
- EL 3515/22a, 2-Spur Tonbandgerät in Kunstoffkassette
- EL 3515/22b, wie - EL 3515/22a, aber mit Schnellstoparretierung
- EL 3515/22c, wie - EL 3515/22a, aber 117 V, 60 Hz
- EL 3515/32b, wie - EL 3515/22a, aber im Koffer



Source of data - - Manufacturers Literature

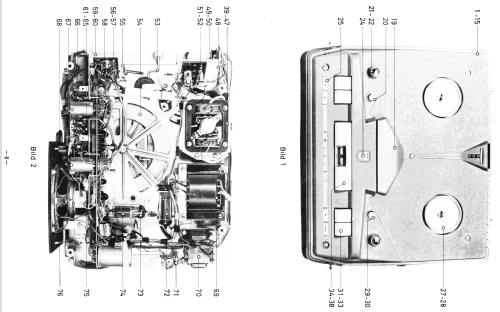

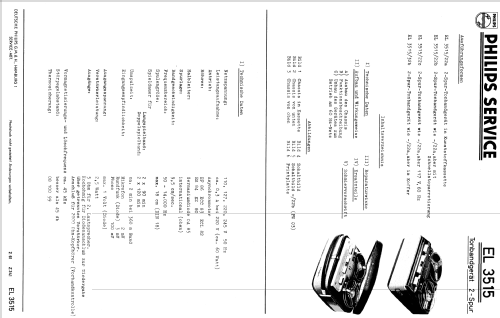

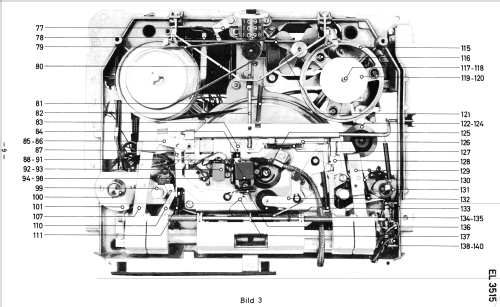

Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) -- Schematic

Model page created by Rino Ferro † 2008. See "Data change" for further contributors.
