EL3530 /00 /01 /02 /03 /05 /07 /50 /53 /60 /90 /96
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1953
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 250458
Gerät steht im Philips Museum in Eindhoven.
Aus den Hersteller-Unterlagen

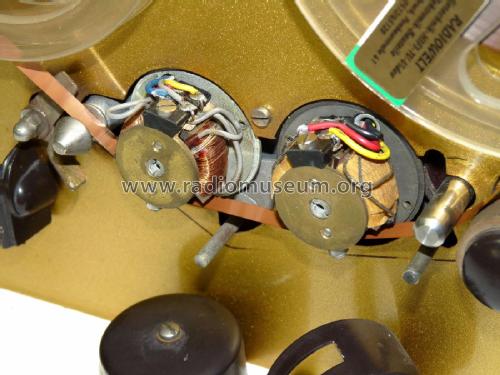

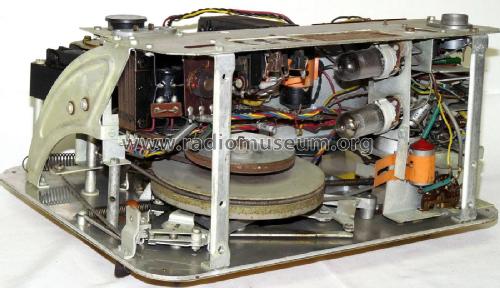

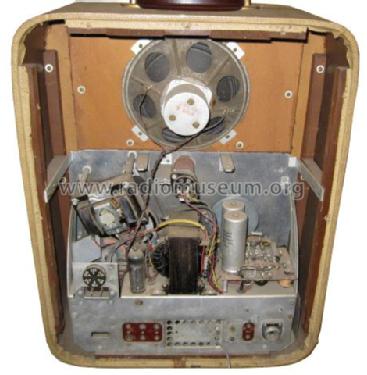

Bild von Michael Martin.
Bild von Michael Martin.
Bild von Michael Martin.
Bild von Michael Martin.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 2 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: EL3530 /00 /01 /02 /03 /05 /07 /50 /53 /60 /90 /96 - Philips; Eindhoven tubes
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 510 x 400 x 200 mm / 20.1 x 15.7 x 7.9 inch
- Notes
-
Tonbandgerät im Koffer, mit eingebautem Lautsprecher.
Laufzeit mit 13 cm Spulen 30 Minuten.
- Net weight (2.2 lb = 1 kg)
- 14.5 kg / 31 lb 15 oz (31.938 lb)
- Price in first year of sale
- 880.00 DM
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
