• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1962 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 157398

• • Brand: Deutsche Philips-Ges.

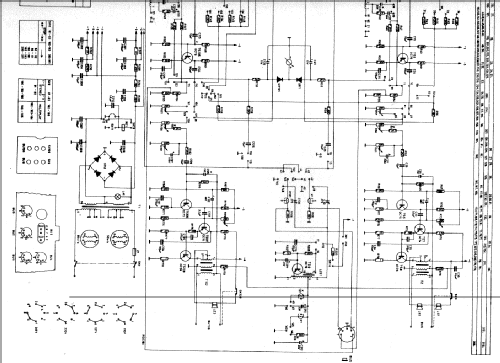

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors
• OC58 or. AC107 OC75 OC26 OC44 OC74 OC79 OA70

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• 3 Loudspeakers / Ø 18 cm = 7.1 inch

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: EL3534 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 475 x 255 x 380 mm / 18.7 x 10 x 15 inch

• Notes
• 4-Spur Stereo Gerät; 2,4 4,75 9,5 19 cm/s; Spulendurchmesser:18 cm; 2. Lautsprecher 3 W, d= 15 cm im Gehäusedeckel.
  Einige Halbleitertypen mehrfach vorhanden.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Klemens Rhode. See "Data change" for further contributors.
