- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1961 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 255563
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details

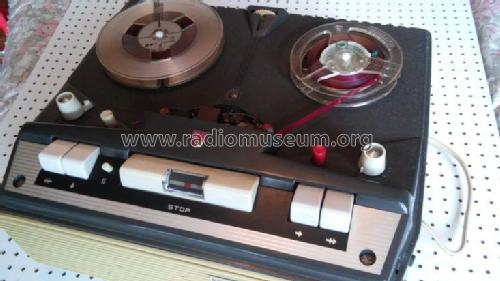

- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Power out
- 2.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: EL3541 /00M - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 370 x 160 x 320 mm / 14.6 x 6.3 x 12.6 inch
- Notes
-
El equipo graba y reproduce en 4 pistas.
Su consumo,según placa del fabricante, es de 60 watios
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
