EL3578 /00

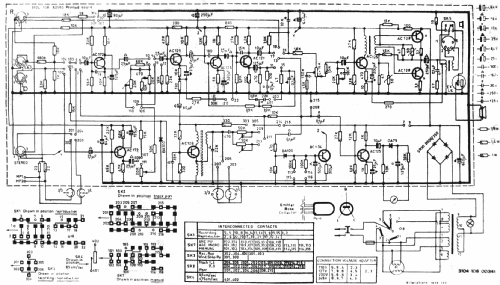

EL3578 /00; Philips Belgium (ID = 2327766) R-Player

EL3578 /00; Philips Belgium (ID = 2328182) R-Player

EL3578 /00; Philips Belgium (ID = 2328183) R-Player

EL3578 /00; Philips Belgium (ID = 2328184) R-Player

EL3578 /00; Philips Belgium (ID = 2328185) R-Player
EL3578 /00; Philips Belgium (ID = 2327767) R-Player EL3578 /00; Philips Belgium (ID = 2327769) R-Player
EL3578 /00; Philips Belgium (ID = 2327771) R-Player EL3578 /00; Philips Belgium (ID = 2327768) R-Player

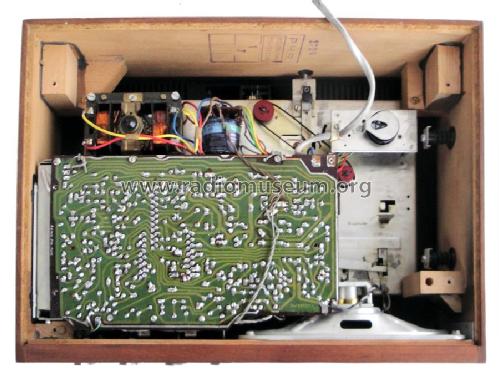

EL3578 /00; Philips Belgium (ID = 2327770) R-Player
Use red slider bar for more.
EL3578 /00; Philips Belgium (ID = 2327767) R-Player
Philips Belgium: EL3578 /00 [R-Player] ID = 2327767 900x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model EL3578 /00, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1966/1967 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 11: AC172 AC125 AC125 AC126 AC125 AC128 AC128 AC172 AC128 BCY34 AC125
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: EL3578 /00 - Philips Belgium Belgien
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 150 x 290 mm / 15.7 x 5.9 x 11.4 inch
Notes

4 Spur Gerät: 1 - 4 / 2 - 3 / Parallel.

2 Geschwindigkeiten: 4,75 und 9,5 cm/sec.

Anschluss für Vorverstärker EL3787 für Duoplay-, Multiplay-Aufnahme und Stereo-Wiedergabe.

Parallelgerät zum österreichischen Modell: Maestro 26 EL3558A/30

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
