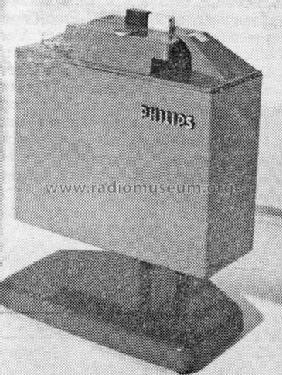

Philips; Eindhoven: Dia-Steuergerät - Slide Synchronizer EL3769 /00 [Misc] ID = 265320 366x485
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dia-Steuergerät - Slide Synchronizer EL3769 /00, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1961 ? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 3: OC71 or. OC75 OC71 or. OC75 OC77 OA85 OA200
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 245 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dia-Steuergerät - Slide Synchronizer EL3769 /00 - Philips; Eindhoven tubes
Material Various materials
Shape Tablemodel, with any shape - general.
Notes

Philips Dia-Steuergerät - Slide Synchronizer EL 3769 /00

Zusatzgerät um einen Dia-Projektor zu steuern. Es zeichnet auf der Spur 2 Impulse zur Steuerung eines Dia-Projektors auf.
Slide synchroniser for use with a reel to reel tape recorder and slide projector. Enables pulses on the tape to activate the slide change in a projector in order to synchronise recorded music or commentary with a slide show.

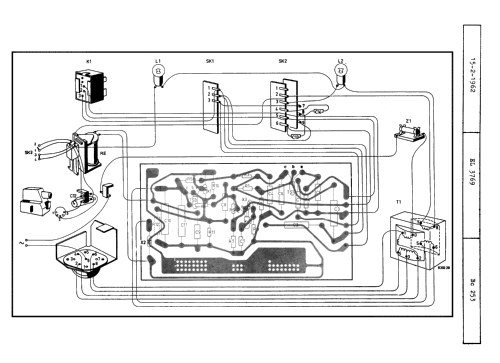

For OC75 and OA200 see 1962 modification BC253 uploaded.

Mentioned in Zeitschrift "Tonband"
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
