EL 3310

EL 3310; Philips - Österreich (ID = 1853205) R-Player

EL 3310; Philips - Österreich (ID = 1853206) R-Player

EL 3310; Philips - Österreich (ID = 1853207) R-Player

EL 3310; Philips - Österreich (ID = 1853208) R-Player

EL 3310; Philips - Österreich (ID = 1853376) R-Player

EL 3310; Philips - Österreich (ID = 1853377) R-Player

EL 3310; Philips - Österreich (ID = 1853378) R-Player

EL 3310; Philips - Österreich (ID = 1853379) R-Player

EL 3310; Philips - Österreich (ID = 1854255) R-Player

EL 3310; Philips - Österreich (ID = 1854256) R-Player
EL 3310; Philips - Österreich (ID = 1853204) R-Player EL 3310; Philips - Österreich (ID = 2566726) R-Player
Use red slider bar for more.
EL 3310; Philips - Österreich (ID = 1853204) R-Player
Philips - Österreich: EL 3310 [R-Player] ID = 1853204 933x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model EL 3310, Philips - Österreich:

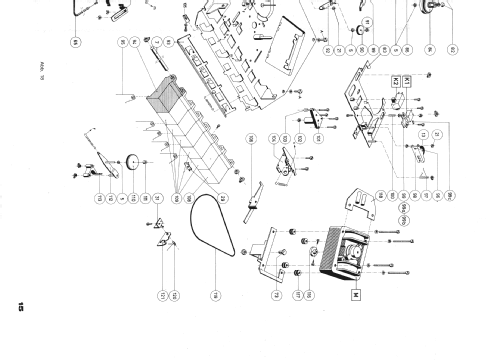

Bild aus Servivedoku.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1966/1967 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: BC109 BC109 BC108 AC127 AC126 BC108 AC187 or. AC175 AC188 or. AC117
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: EL 3310 - Philips - Österreich
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 365 x 95 x 215 mm / 14.4 x 3.7 x 8.5 inch
Notes

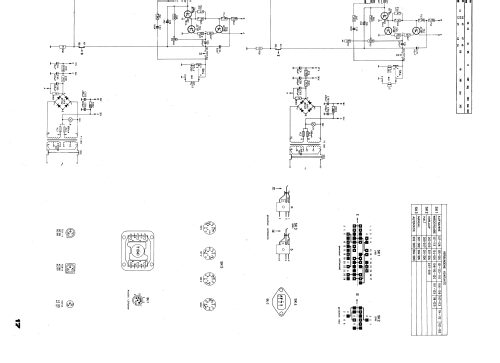

2 verschieden bestückte Ausführungen, siehe Schaltplan.
Parallelgerät zum Horny WM9111A.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
