Elysee 352 24B352 Ch= E1

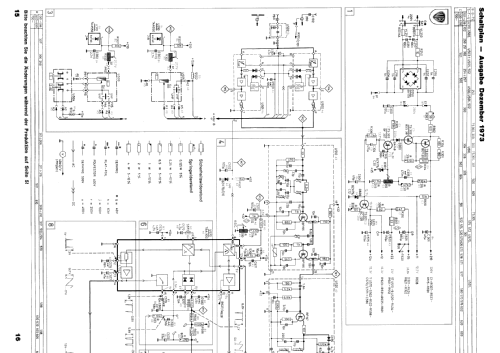

Elysee 352 24B352 Ch= E1; Philips - Österreich (ID = 297536) Television

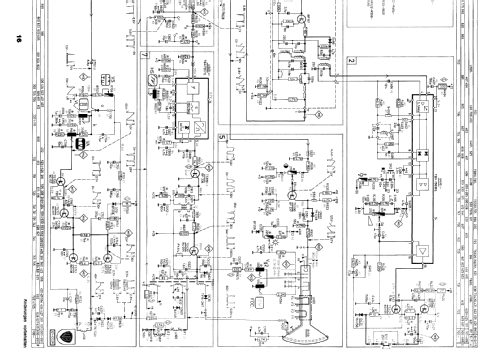

Elysee 352 24B352 Ch= E1; Philips - Österreich (ID = 297537) Television

Elysee 352 24B352 Ch= E1; Philips - Österreich (ID = 1946192) Television
Elysee 352 24B352 Ch= E1; Philips - Österreich (ID = 297535) Television Elysee 352 24B352 Ch= E1; Philips - Österreich (ID = 1946418) Television
Use red slider bar for more.
Elysee 352 24B352 Ch= E1; Philips - Österreich (ID = 297535) Television
Philips - Österreich: Elysee 352 24B352 Ch= E1 [Television] ID = 297535 800x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elysee 352 24B352 Ch= E1, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1973 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A61-120W
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Elysee 352 24B352 Ch= E1 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 665 x 490 x 390 mm / 26.2 x 19.3 x 15.4 inch
Notes ICs: TAA550, TBA750BQ, TBA900, TBA720AQ.
Empfangsbereiche VHF und UHF.
Zwei Ausführungen: hell matt und weiß.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
