• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79599

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF127 AF127 AF127 AC132 AC132 AC132 OA70

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

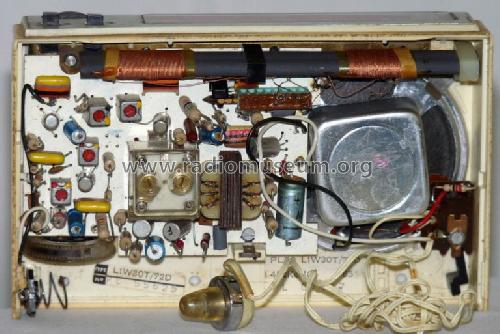

• Model: Evette L1W30T /72D /72G /72X - Philips - Österreich

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 142 x 92 x 37 mm / 5.6 x 3.6 x 1.5 inch

• Notes
• In Deutschland hieß das Gerät Fanette 22RL160. Die Tasche dazu gab es um 50.- öS. 4 Farben: schwarz, elfenbein, grau, blau. Ohrhörer ist direkt im Gerät angeschlossen und im Batteriefach verstaut

• Price in first year of sale
• 495.00 öS

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
