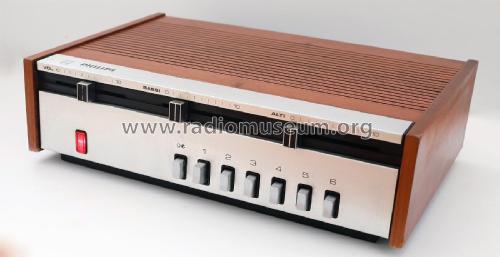

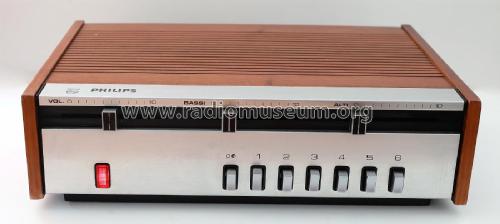

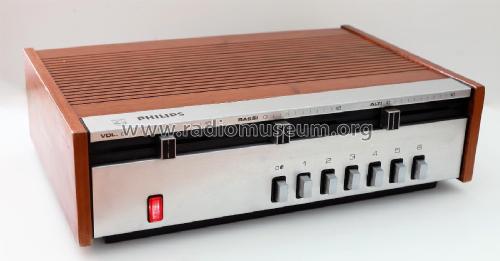

FD RB 324

FD RB 324; Philips Italy; (ID = 1857716) Radio
FD RB 324; Philips Italy; (ID = 1508229) Radio FD RB 324; Philips Italy; (ID = 1508145) Radio
FD RB 324; Philips Italy; (ID = 1508230) Radio FD RB 324; Philips Italy; (ID = 1508143) Radio
FD RB 324; Philips Italy; (ID = 1508146) Radio
Use red slider bar for more.

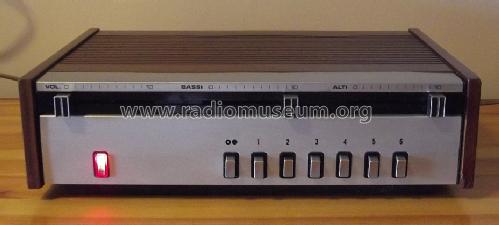

FD RB 324; Philips Italy; (ID = 1508229) Radio
Philips Italy;: FD RB 324 [Radio] ID = 1508229 930x420
Select picture or schematic to display from thumbnails on the right and click for download.
For model FD RB 324, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1972 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: BC148 BC148 BC148 BC149 BC149 AA119 AA119 BZX79 1N4001 TBA800
Main principle TRF with diode detector
Wave bands Long Wave and/or Very Low Frequency (VLF).
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: FD RB 324 - Philips Italy; Milano MI
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 320 x 212 x 93 mm / 12.6 x 8.3 x 3.7 inch
Notes

Altoparlante con magnete permanente posto anteriormente lato ascolto (per ridurre l'ingombro in altezza dell'apparecchio).

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)

Model page created by Umberto Incardona. See "Data change" for further contributors.
