FM 23RDK421D

FM 23RDK421D; Philips Radio A/S; K (ID = 693022) TV Radio FM 23RDK421D; Philips Radio A/S; K (ID = 693021) TV Radio
Use red slider bar for more.

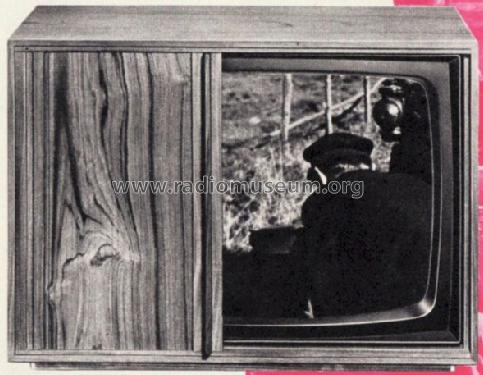

FM 23RDK421D; Philips Radio A/S; K (ID = 693022) TV Radio
Philips Radio A/S; K: FM 23RDK421D [TV Radio] ID = 693022 589x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM 23RDK421D, Philips Radio A/S; København:
(DK) Philips for hele familie 1963/64 / 4067-8-63 Philips Reklame

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1963/1964 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM 23RDK421D - Philips Radio A/S; København
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 699 x 570 x 324 mm / 27.5 x 22.4 x 12.8 inch
Notes Philips FM 23RDK421D; 23" b/w TV with CCIR B standard VHF tuner, UHF prepared, FM radio.
Mentioned in - - Manufacturers Literature ((DK) Philips for hele familie 1963/64 / 4067-8-63 Philips Reklame)

Model page created by a member from A. See "Data change" for further contributors.
