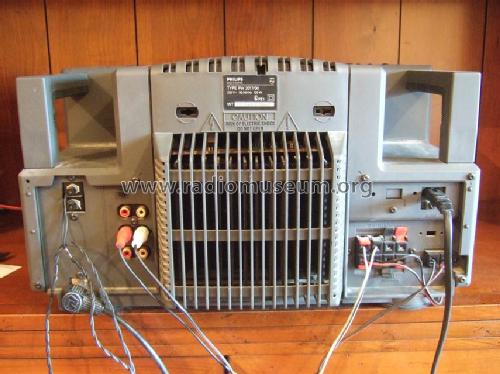

FW-2017/00; Philips - Österreich (ID = 716553) Radio
Philips - Österreich: FW-2017/00 [Radio] ID = 716553 641x855
Select picture or schematic to display from thumbnails on the right and click for download.
For model FW-2017/00, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1991 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Converter
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (unknown quality)
from Radiomuseum.org Model: FW-2017/00 - Philips - Österreich
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 390 x 210 x 270 mm / 15.4 x 8.3 x 10.6 inch
Notes Receptor AM FM Stereo. Dolby Digital, una pletina de cassete reproductora y otra reproductora/grabadora. Reproductor CD. Dos altavoces separados de 210 x 140 x 130 mm y un altavoz (Baritone)de 140 x 580 x 320 mm. Amplificador HI-FI de 2 x 20 W, lineales con carga de 8 ohms; respuesta de frecuencia de 30Hz-40KHz. Conesiones para cuatro cajas mas Baritone.

Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
