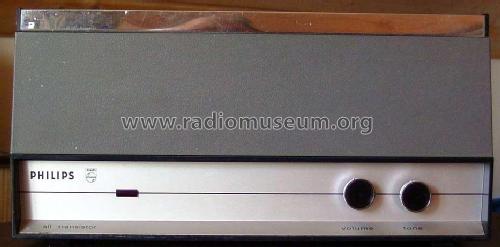

For model 22GF040, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1967/1968 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: OC75 AC126 AC128 AC128
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: 22GF040 - Philips Radios - Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 165 x 315 mm / 13.8 x 6.5 x 12.4 inch
Notes Plattenwechsler-Verstärkerkoffer. 4 Geschwindigkeiten; Kristallsystem GP306 mit Duplo-Nadel 946/SS50; Lautsprecher im abnehmbaren Deckel.
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Source of data Handbuch VDRG 1967/1968

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
