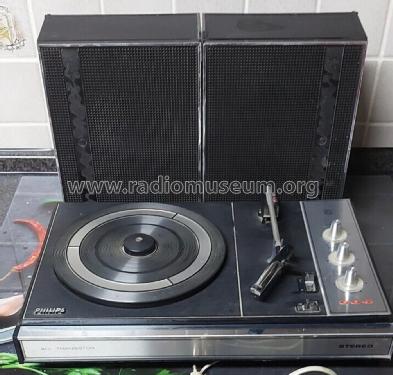

Stereo-Electrophon 22GF604

Stereo-Electrophon 22GF604; Philips - Österreich (ID = 1067704) R-Player

Stereo-Electrophon 22GF604; Philips - Österreich (ID = 1590830) R-Player

Stereo-Electrophon 22GF604; Philips - Österreich (ID = 1590831) R-Player

Stereo-Electrophon 22GF604; Philips - Österreich (ID = 1590832) R-Player
Stereo-Electrophon 22GF604; Philips - Österreich (ID = 221118) R-Player Stereo-Electrophon 22GF604; Philips - Österreich (ID = 1759741) R-Player
Stereo-Electrophon 22GF604; Philips - Österreich (ID = 1986966) R-Player
Use red slider bar for more.
Stereo-Electrophon 22GF604; Philips - Österreich (ID = 221118) R-Player
Philips - Österreich: Stereo-Electrophon 22GF604 [R-Player] ID = 221118 720x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Electrophon 22GF604, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1971–1974 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10:
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Line / Batteries (any type) / 110; 127; 220; 240 / 6×1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Stereo-Electrophon 22GF604 - Philips - Österreich
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 400 x 160 x 200 mm / 15.7 x 6.3 x 7.9 inch
Notes

3 Geschwindigkeiten; Keramiksystem GP200 mit Duplonadel 946/DS51. Stereo-NF-Verstärker mit 2 Endstufen je 2 W.

Nadel Auflagedruck einstellbar.

5-pol. Din. Überspielbuchse.

Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Source of data Handbuch VDRG 1971/1972

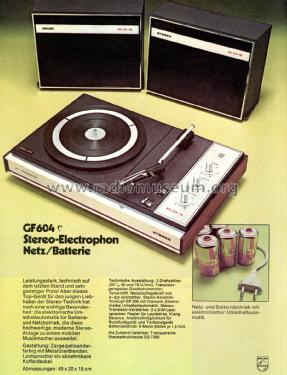

Mentioned in -- Original prospect or advert

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
