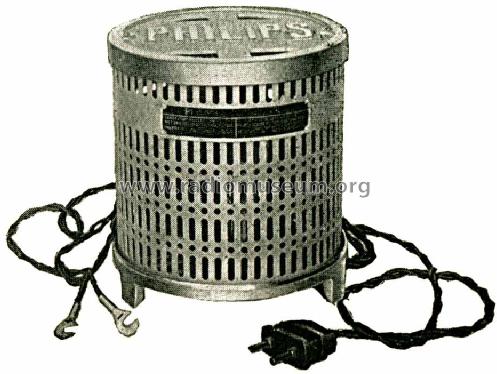

Gleichrichter für Lautsprecher 1337

Philips; Eindhoven (tubes international!); Miniwatt

  • Year
  • 1934 ?
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 179539

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 1010
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Gleichrichter für Lautsprecher 1337 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 160 x 175 x 160 mm / 6.3 x 6.9 x 6.3 inch
  • Notes
  • Gleichrichter für die Erregung elektrodynamischer Lautsprecher.
    Gleichstromleistung: 20 V; 1,3 A.
    Folgende Philips-Lautsprecher können von diesem Apparat gespeist werden: 2047, 2060F, 2203, 2246, 2247
  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Philips-Katalog, 1934)
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
