Glory FM L4W33T; Philips - Österreich (ID = 1145198) Radio
Philips - Österreich: Glory FM L4W33T [Radio] ID = 1145198 933x689
Select picture or schematic to display from thumbnails on the right and click for download.
For model Glory FM L4W33T, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF102 AF114 AF116 AF116 AF116 AC125 OC75 OC75 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 4 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Glory FM L4W33T - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 200 x 102 mm / 12.6 x 7.9 x 4 inch
Notes AFC, schaltbare Skalenbeleuchtung, Schaltbuchse für Autoantenne (schaltet separate Vorkreise für MW und LW), TA, Ohrhörer. Anschlussmöglichkeit für externe Stromversorgung NG3972.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)

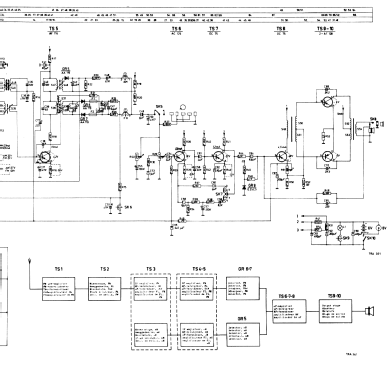

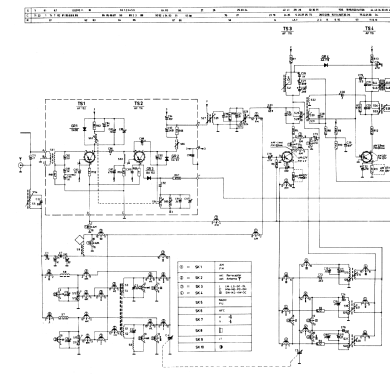

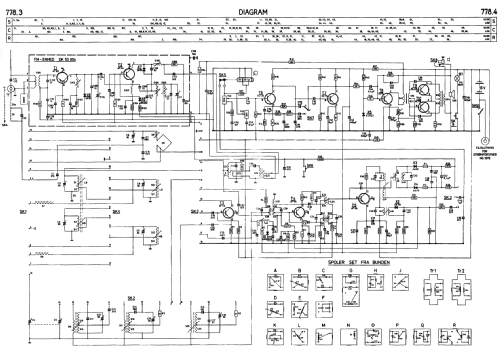

Source of data -- Schematic

Model page created by Karl-Heinz Entrich. See "Data change" for further contributors.
