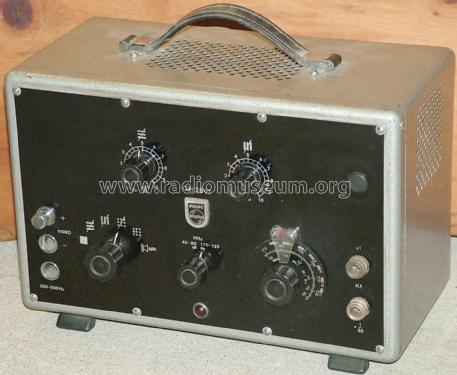

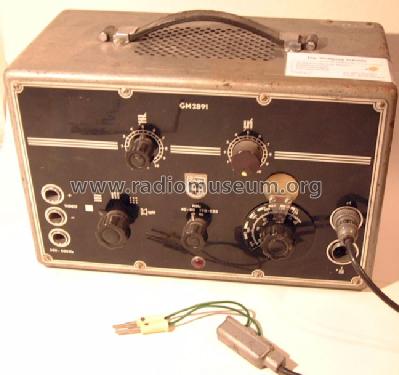

Fernseh-Prüfgenerator GM2891 /50
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1956
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 73185

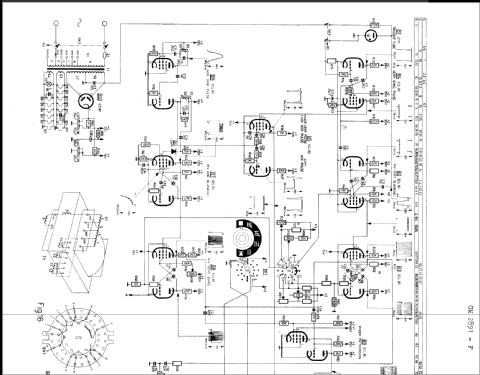

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- Semiconductors
- OA81
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Fernseh-Prüfgenerator GM2891 /50 - Philips; Eindhoven tubes
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 335 x 220 x 165 mm / 13.2 x 8.7 x 6.5 inch
- Notes
-
TV-Service-Oszillator bzw. Bildmustergenerator für die Bänder I und III.
Frequenzbereiche: 40-80 MHz, 170-225 MHz, Zeilenfrequenz 15625 Hz, Rasterfrequenz 50 Hz. Bildmodulation negativ, Bild-Ton-Abstand 5.5 MHz, Ton-Modulation FM.
Röhren nur einmal genannt. Bestückung 9 x ECL80, 2 x ECC85, 1 x EC80, und 1 x EZ80.
Siehe auch GM2891 /60.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Price in first year of sale
- 995.00 DM
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Martin Fichtinger. See "Data change" for further contributors.
- Other Models
-
Here you find 5245 models, 4382 with images and 3450 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model Fernseh-Prüfgenerator is part of the collections of the following members.
Forum contributions about this model: Philips; Eindhoven: Fernseh-Prüfgenerator GM2891 /50
Threads: 1 | Posts: 3
Der Generator ist mit 9 x ECL80 ,1x EC80, 2x ECC85 und 1xEZ80 bestückt.Bei Bemerkungen sind nur 8 Stck ECL80 angeführt.
Gruß C.Marker
Claus Marker, 08.Jun.16
