GM4144

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1951–1965

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 73091

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF40 EZ40 EM34

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Material
• Metal case

• from Radiomuseum.org

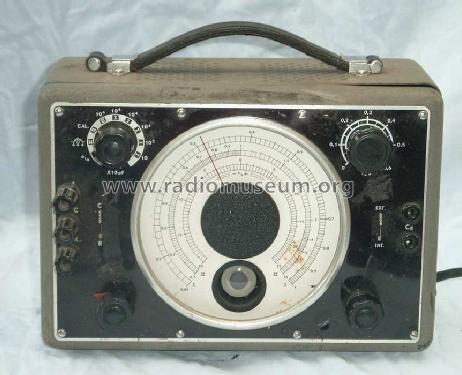

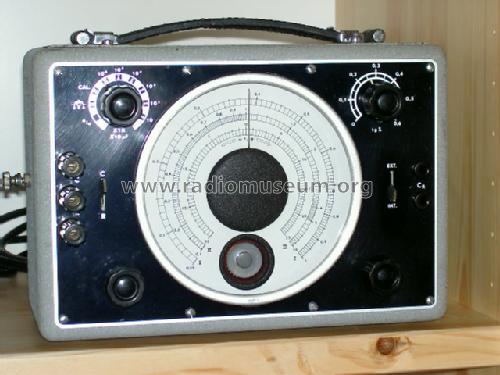

• Model: GM4144 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Notes
• Service-RC-Meßbrücke, Meßbereiche: Widerstand 0,5 Ohm - 10 MOhm, Kapazität 1 pF - 100 µF und Isolationswiderstandsmessung möglich. Early version has a EM4 magic eye

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 530.00 DM

• Mentioned in
• Katalog Radio Fern, 1960
