Goal 150LT

Goal 150LT; Philips Italy; (ID = 2339006) Radio Goal 150LT; Philips Italy; (ID = 2339009) Radio

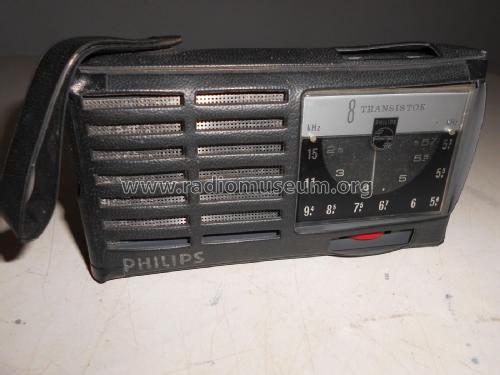

Goal 150LT; Philips Italy; (ID = 2339007) Radio Goal 150LT; Philips Italy; (ID = 2339010) Radio
Goal 150LT; Philips Italy; (ID = 2339011) Radio Goal 150LT; Philips Italy; (ID = 1576734) Radio
Goal 150LT; Philips Italy; (ID = 1576733) Radio Goal 150LT; Philips Italy; (ID = 1576732) Radio
Goal 150LT; Philips Italy; (ID = 1576735) Radio Goal 150LT; Philips Italy; (ID = 1576736) Radio
Use red slider bar for more.
Goal 150LT; Philips Italy; (ID = 2339006) Radio
Philips Italy;: Goal 150LT [Radio] ID = 2339006 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goal 150LT, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Goal 150LT - Philips Italy; Milano MI
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 135 x 75 x 30 mm / 5.3 x 3 x 1.2 inch
Notes

See also Goal 19RL160 which seems to be identical.

Model page created by Aldo Andreani. See "Data change" for further contributors.
