Happy 90AL070 /00R

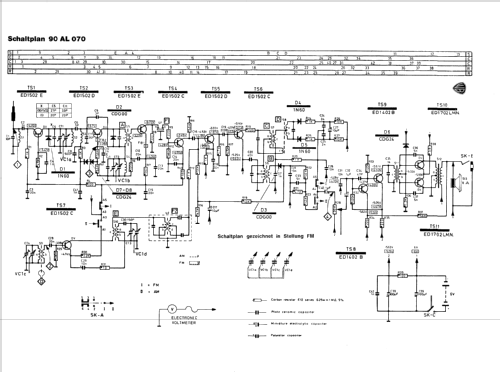

Happy 90AL070 /00R; Philips - Österreich (ID = 127524) Radio

Happy 90AL070 /00R; Philips - Österreich (ID = 127525) Radio
Happy 90AL070 /00R; Philips - Österreich (ID = 2335155) Radio Happy 90AL070 /00R; Philips - Österreich (ID = 2335153) Radio
Happy 90AL070 /00R; Philips - Österreich (ID = 2335154) Radio Happy 90AL070 /00R; Philips - Österreich (ID = 2335156) Radio
Happy 90AL070 /00R; Philips - Österreich (ID = 2335157) Radio Happy 90AL070 /00R; Philips - Österreich (ID = 686007) Radio
Happy 90AL070 /00R; Philips - Österreich (ID = 686004) Radio Happy 90AL070 /00R; Philips - Österreich (ID = 686005) Radio
Happy 90AL070 /00R; Philips - Österreich (ID = 127523) Radio Happy 90AL070 /00R; Philips - Österreich (ID = 358147) Radio
Use red slider bar for more.
Happy 90AL070 /00R; Philips - Österreich (ID = 2335155) Radio
Philips - Österreich: Happy 90AL070 /00R [Radio] ID = 2335155 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Happy 90AL070 /00R, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: ED1502 ED1502 ED1502 ED1502 ED1502 ED1502 ED1502 ED1402 ED1402 ED1702 ED1702
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Happy 90AL070 /00R - Philips - Österreich
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 143 x 80 x 42 mm / 5.6 x 3.1 x 1.7 inch
Notes AM/FM Portable, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Teleskopantenne 48 cm, Ferritantenne 5,5 cm
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
