Henriette L4X90T

Henriette L4X90T; Philips Belgium (ID = 69369) Radio

Henriette L4X90T; Philips Belgium (ID = 69371) Radio

Henriette L4X90T; Philips Belgium (ID = 174910) Radio

Henriette L4X90T; Philips Belgium (ID = 174911) Radio

Henriette L4X90T; Philips Belgium (ID = 174913) Radio

Henriette L4X90T; Philips Belgium (ID = 174909) Radio

Henriette L4X90T; Philips Belgium (ID = 1854403) Radio

Henriette L4X90T; Philips Belgium (ID = 1854404) Radio
Henriette L4X90T; Philips Belgium (ID = 937157) Radio Henriette L4X90T; Philips Belgium (ID = 937159) Radio
Henriette L4X90T; Philips Belgium (ID = 937158) Radio Henriette L4X90T; Philips Belgium (ID = 637410) Radio
Henriette L4X90T; Philips Belgium (ID = 937160) Radio
Use red slider bar for more.
Henriette L4X90T; Philips Belgium (ID = 937157) Radio
Philips Belgium: Henriette L4X90T [Radio] ID = 937157 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Henriette L4X90T, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1959–1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC170 OC45 OC45 OC75 OC75 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Henriette L4X90T - Philips Belgium Belgien
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 210 x 100 mm / 12.2 x 8.3 x 3.9 inch
Notes
Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Price in first year of sale 268.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 1, Ernst Erb

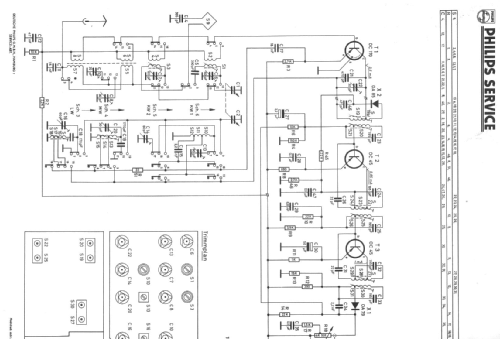

Literature/Schematics (1) -- Original-techn. papers.
