HFA-10
Philips Canada
- Country
- Canada
- Manufacturer / Brand
- Philips Canada
- Year
- 1954 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 301329
From RCC manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 6 Taps: 110, 125, 145, 200, 220, 245 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org

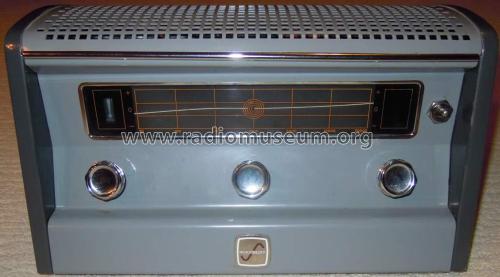

- Model: HFA-10 - Philips Canada
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 13 x 7.25 x 9 inch / 330 x 184 x 229 mm
- Notes
-
The Philips model HFA-10 is a high fidelity mono audio amplifier with bass and treble controls. Has phono "straight" and phono "AES" input. AES signifies Audio Engineering Standard. The "straight" input has a flat frequency response and can be used for radio or tape inputs.
- Net weight (2.2 lb = 1 kg)
- 22 lb (22 lb 0 oz) / 9.988 kg

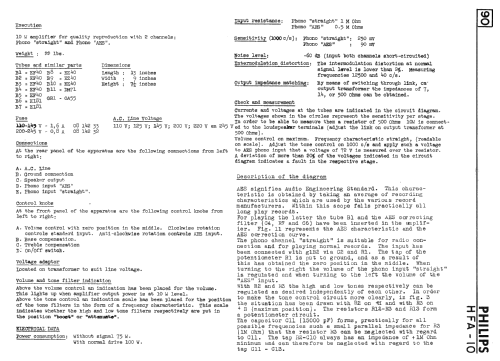

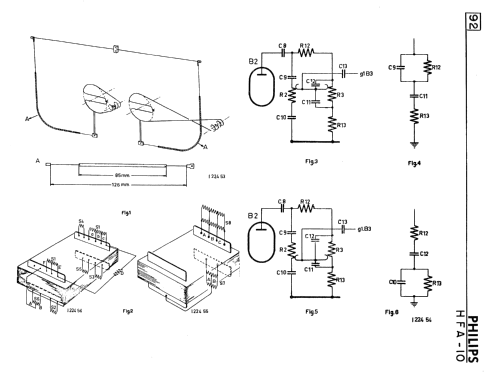

- Literature/Schematics (1)
- Radio College of Canada (RCC) (1955 Supplement 34)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
