Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019072) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019073) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019074) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019075) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019076) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019077) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019078) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019079) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019080) Radio

Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019081) Radio
Use red slider bar for more.
Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z; Philips; Eindhoven (ID = 2019072) Radio

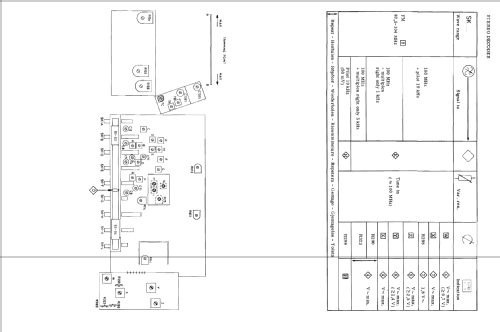

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 46: BF334 BF335 BF195 BC149 BC147 AD161 BC158 BC148 BC147 BD135 BD138 BD181 BC138 BC159 BC178 BF200 BF194
Main principle Superheterodyne (common); ZF/IF 452 or 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Hi-Fi Tuner-amplifier 5702 /00Z /63T /73P /80Z - Philips; Eindhoven tubes
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 564 x 111 x 215 mm / 22.2 x 4.4 x 8.5 inch
Notes

Two MW ranges:

  • MW1 = 520 - 1420 kHz
  • MW2 = 1405 - 1605 kHz

Versions:

  • /00Z = cabinet in walnut
  • /63T = cabinet in teak
  • /73P = cabinet in palisander
  • /80Z = cabinet in walnut

  • /00, /63, /73 = IF frequency of 452 kHz
  • /80 = IF frequency of 460 kHz

This model is preliminarily listed under Philips Netherlands. The manual is generic for multiple sub-brands (e.g. Horny, Aristona etc).

Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
