• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21929

• • Brand: Deutsche Philips-Ges.

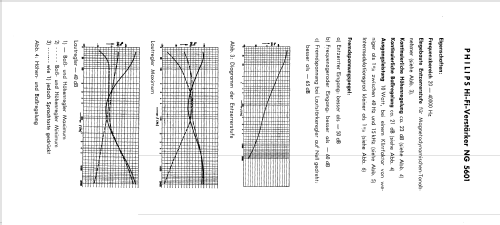

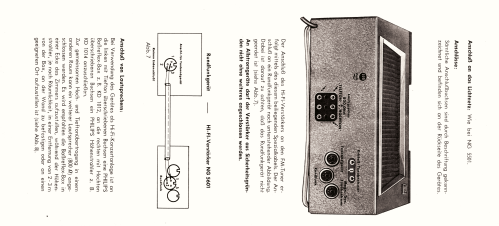

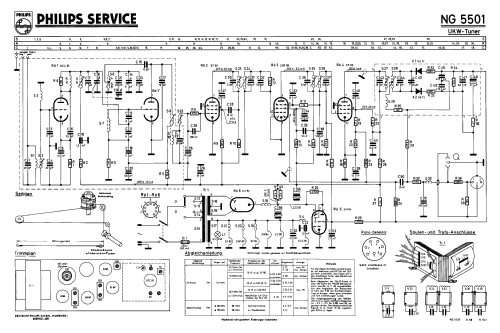

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 EF89 EBF89 EF80 EM84 EZ80

• Number of Transistors

• Semiconductors
• OA72 OA72

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: UKW-Tuner NG5501 - Philips Radios - Deutschland

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 264 x 210 x 108 mm / 10.4 x 8.3 x 4.3 inch

• Notes

• Frühes Steuergerät bzw. Tuner.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 205.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Mentioned in
• Funk-Technik (FT) (9/1958, S. 281 - 284 / Ausführliche Beschreibung)
