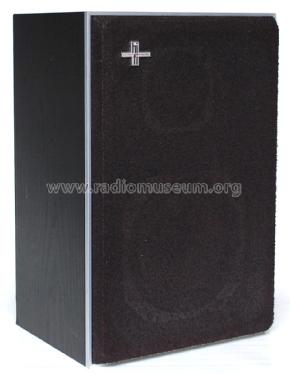

HiFi Lautsprecherbox 22AH482 /00R

HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2189246) Speaker-P HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2189245) Speaker-P
HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2187219) Speaker-P HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2187220) Speaker-P
HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2189247) Speaker-P HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2189248) Speaker-P
HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2189249) Speaker-P
Use red slider bar for more.
HiFi Lautsprecherbox 22AH482 /00R; Philips Belgium (ID = 2189246) Speaker-P
Philips Belgium: HiFi Lautsprecherbox 22AH482 /00R [Speaker-P] ID = 2189246 933x1283
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Lautsprecherbox 22AH482 /00R, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1978 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 35 W (70 W max.)
from Radiomuseum.org Model: HiFi Lautsprecherbox 22AH482 /00R - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 260 x 390 x 160 mm / 10.2 x 15.4 x 6.3 inch
Notes

Das Modell 22AH482 /00R von Philips ist eine 2-Weg HiFi Lautsprecherbox.

Einige technische Daten:
Übertragungsbereich: 45 - 20.000 Hz;
Belastbarkeit, Nenn/Musik: 35/70 W;
Lautsprecher: 1 Tief- Mittelton-LS und 1 Kalottenhochtöner;
Impedanz: 8 Ω;

Made in Belgium.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by Jürgen Küting. See "Data change" for further contributors.
