HiFi-Stereo-Steuergerät RH702 22RH702 /62Z 40 Transistoren

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283975

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 40

• Semiconductors
• BF334 BF335 BF195 BC149 BC147 BC157 BD136 SDL345 SDL445 AD161 BC158 BC178 BC148 BC108 BF200 BF194

• Main principle
• Superheterodyne (common); ZF/IF 452 or 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi-Stereo-Steuergerät RH702 22RH702 /62Z [40 Transistoren] - Philips - Österreich

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 565 x 110 x 215 mm / 22.2 x 4.3 x 8.5 inch

• Notes

• Zwei Mittelwellenbereiche:
  MW1 = 520 - 1420 kHz
  MW2 = 1405 - 1605 kHz

  Ausführung /62Z = Nuß matt.
  Siehe auch 22RH702 /80Z 46 Transistoren mit geänderter Endstufe.

  Halbleiter nur einmal je Type gelistet.

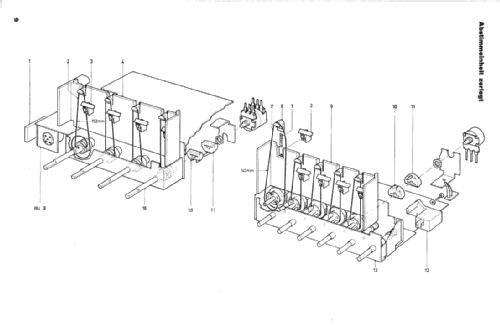

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
