High Fidelity Laboratories Receiver 7841 AH7841-BK01

Philips USA

  • Year
  • 1978 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 331009

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz, 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (undistorted)
  • Material

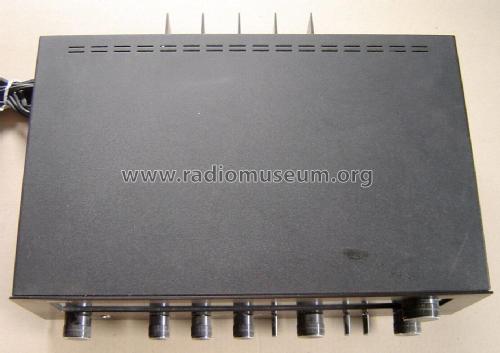

  • Metal case
  • from Radiomuseum.org
  • Model: High Fidelity Laboratories Receiver 7841 AH7841-BK01 - Philips USA
  • Shape
  • Book-shelf unit.
  • Notes

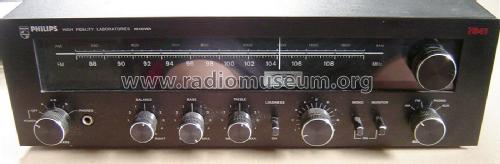

  • Philips 7841 is an AM/FM Stereo Receiver.

    Continuous Power Output: 2 x 20 W
    Frequency response: 20 Hz - 20 kHz
    THD: 0.1%

    Wavebands:
    FM = 87.5 - 108 MHz
    AM = 540 - 1605 kHz

    Color: black. Same model in silver see Philips AH784

  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
