Holiday Super 437 22RR437; Philips - Österreich (ID = 2138950) Radio

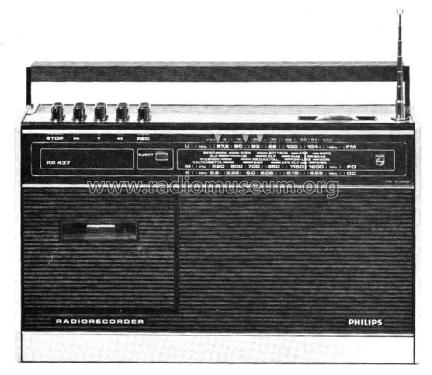

Philips - Österreich: Holiday Super 437 22RR437 [Radio] ID = 2138950 990x858
Select picture or schematic to display from thumbnails on the right and click for download.
For model Holiday Super 437 22RR437, Philips - Österreich:
Bild aus Servicedoku

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1974/1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16: BF495 BF495 BF494 BF495 BC549 BC549 BC548 AC127 AC128 AC128 AC127 AC188 AC187 AC127 AC128 AC128
Main principle ZF/IF 460/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Holiday Super 437 22RR437 - Philips - Österreich
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Type designation Holiday Super 437 for the Austrian market, may have been made in Belgium or the Netherlands. Possible unproven execution suffix /30.




Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
