Hurrican 22AR564

Hurrican 22AR564; Philips - Österreich (ID = 150926) Radio

Hurrican 22AR564; Philips - Österreich (ID = 150927) Radio

Hurrican 22AR564; Philips - Österreich (ID = 150928) Radio

Hurrican 22AR564; Philips - Österreich (ID = 1433074) Radio

Hurrican 22AR564; Philips - Österreich (ID = 1433076) Radio

Hurrican 22AR564; Philips - Österreich (ID = 1433077) Radio

Hurrican 22AR564; Philips - Österreich (ID = 1433079) Radio

Hurrican 22AR564; Philips - Österreich (ID = 1433081) Radio

Hurrican 22AR564; Philips - Österreich (ID = 1433082) Radio

Hurrican 22AR564; Philips - Österreich (ID = 1433084) Radio
Hurrican 22AR564; Philips - Österreich (ID = 962333) Radio Hurrican 22AR564; Philips - Österreich (ID = 150925) Radio
Hurrican 22AR564; Philips - Österreich (ID = 2112502) Radio
Use red slider bar for more.
Hurrican 22AR564; Philips - Österreich (ID = 962333) Radio
Philips - Österreich: Hurrican 22AR564 [Radio] ID = 962333 714x649
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hurrican 22AR564, Philips - Österreich:
Prospekt: Alle Klänge dieser Welt, Ausgabe 1978/79

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 35:
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 6 × 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Hurrican 22AR564 - Philips - Österreich
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 240 x 81 mm / 14.6 x 9.4 x 3.2 inch
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Source of data Radiokatalog Band 2, Ernst Erb

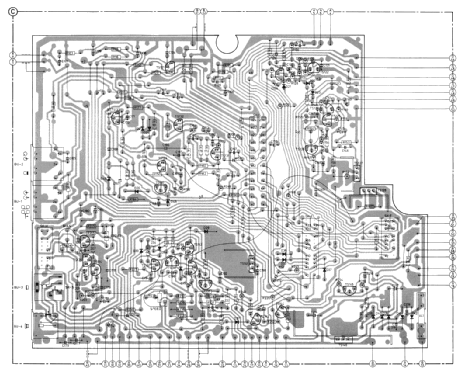

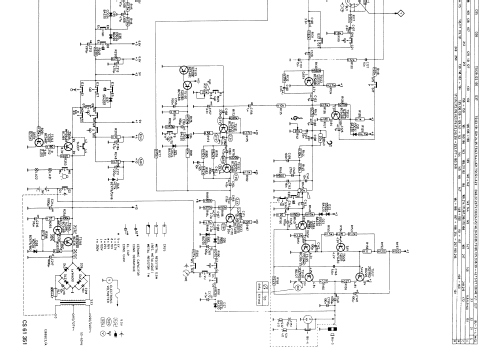

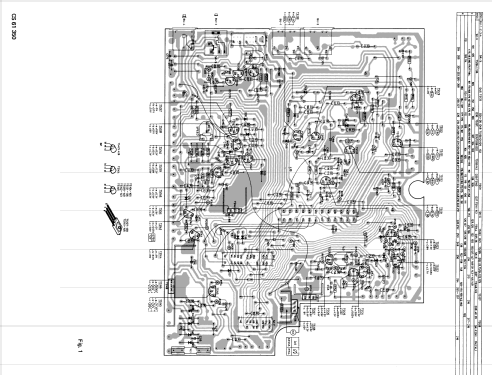

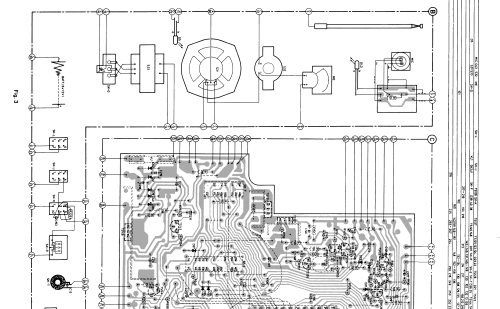

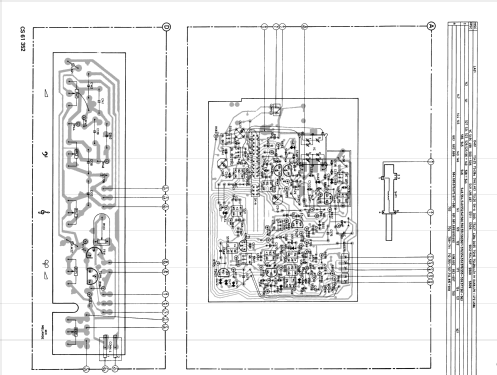

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
