Jenny 113 90RL113/22

Jenny 113 90RL113/22; Philips - Österreich (ID = 1080628) Radio

Jenny 113 90RL113/22; Philips - Österreich (ID = 1080627) Radio
Jenny 113 90RL113/22; Philips - Österreich (ID = 767633) Radio Jenny 113 90RL113/22; Philips - Österreich (ID = 767630) Radio

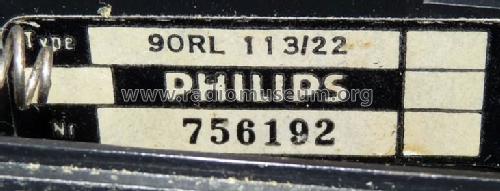

Jenny 113 90RL113/22; Philips - Österreich (ID = 767631) Radio Jenny 113 90RL113/22; Philips - Österreich (ID = 767632) Radio
Jenny 113 90RL113/22; Philips - Österreich (ID = 1300885) Radio Jenny 113 90RL113/22; Philips - Österreich (ID = 1476609) Radio
Jenny 113 90RL113/22; Philips - Österreich (ID = 1476614) Radio Jenny 113 90RL113/22; Philips - Österreich (ID = 1748735) Radio
Jenny 113 90RL113/22; Philips - Österreich (ID = 2172933) Radio Jenny 113 90RL113/22; Philips - Österreich (ID = 2172936) Radio
Use red slider bar for more.
Jenny 113 90RL113/22; Philips - Österreich (ID = 767633) Radio
Philips - Österreich: Jenny 113 90RL113/22 [Radio] ID = 767633 784x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jenny 113 90RL113/22, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Jenny 113 90RL113/22 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 170 x 100 x 45 mm / 6.7 x 3.9 x 1.8 inch
Notes Frequenzbereich: FM 88...104 MHz; AM 540...1600 kHz. Ovallautsprecher (6 x 9 cm). Kopfhöreranschluß (Klinke 3,5 mm). 10 tlg. Teleskopantenne (55 cm). Ferritantenne (12 cm).
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Source of data -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
